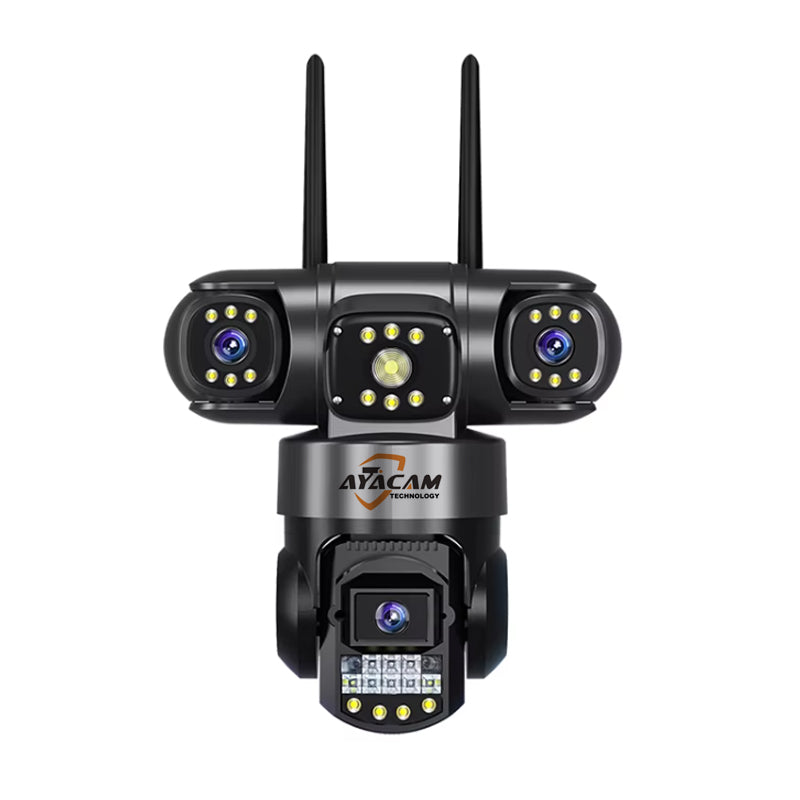

3 Lens 3 Screens WiFi PTZ Camera AP Hostop Two-voice Way Ourdoor Network Home Smart CCTV WIFI Camera

Model:

SC28-W-L

APP:

V380 Pro

System structure:

Embedded Linux system, ARM chip structure

Chip:

XM 535D1

Resolution:

2+2+2=6MP

Sensor Resolution:

1/4.6" Progressive Scan CMOS（SC1346*3）

Lens:

3*4MM

View angle:

3*80°

Pan-tilt:

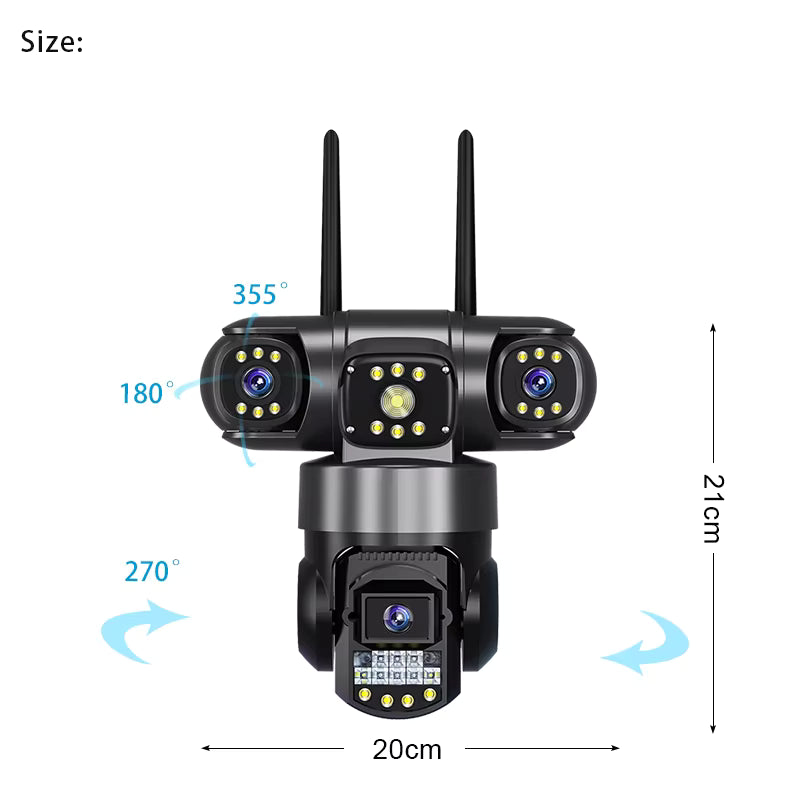

Rotates Horizontal:355° Vertical：90°

Preset point quantity:

6

Video compression standard:

H.265/15FPS

Video format:

PAL

Minimum illumination:

0.01Lux@（F2.0，VGC ON),O.Luxwith IR

Electronic shutter:

Auto

Backlight compensation:

Support

Noise reduction:

2D、3D

LED quantity:

Right camera: 6pcs Dual Core LED
Left camera: 6pcs Dual Core LED
PTZ camera: 11pcs Dual Core LED

Network:

WIFI wireless transmission (support IEEE802.11b/g/n wireless protocol).

Network connection:

WIFI, AP Hotspot and RJ45 Network port

Night vision

IR-CUT switch Automatic，about 5-8meters (It varies from environment)
White Led can be remote control via APP:①Turn ON ②Turn OFF ③ Auto
(In automatic mode, the infrared light will be turned ON after the IR-cut switch to night vision auto , it can intelligently
detected human body, and Turn ON/OFF the White light intelligently )

Audio:

Built-in microphone and speaker, support two-way audio and real-time transmission.
ADPCM audio compression standard, self-adapt to code stream

Network protocol:

TCP/IP、DDNS、DHCP

Alarm:

①Motion detection and picture push ②AI Human intrusion Detection

Storage:

TF Card（Max 128G）；Cloud storage /Cloud disk (optional)

Power input:

12V/2A

Work environment:

Working temperature:-10℃ ~ + 50℃ Working Humidity: ≤95%RH

Color box:

21*15.5*21.5mm

Package:

66*45*68cm

Quantities:

24PCS
